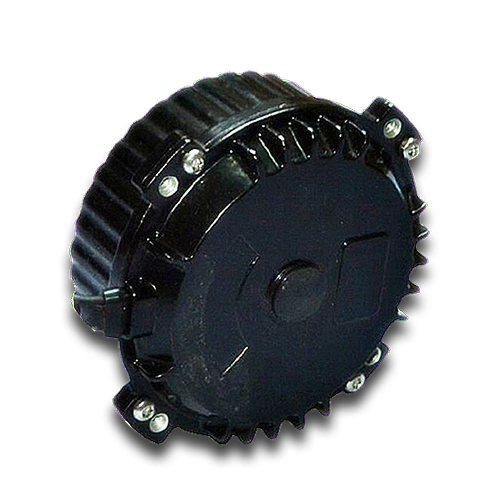

24V 5500RPM 400W High Torque Brushless Dc Electric Motor MM702

24V 5500RPM 400W High Torque Brushless Dc Electric Motor
Draught fan,medical equipment, mechanical equipment etc.

Quantity:
  • MM702
  • McMaster
  • MM702


Our Products


High Speed Low Torque  24V Brushless DC Motor

Product Application: draught fan,medical equipment, mechanical equipment etc.

Customized manufacturing available




MM702(官网正文)


Specifications

Model

VOLTAGE

(VDC)

NO LOAD

RATED LOAD

TORQUE

(Nm)

Cogging

Torque

(Nm)

Power

(W)

LENGTH

(mm)

CURRENT

(A)

SPEED

(r/min)

CURRENT

(A)

SPEED

(r/min)

MM702-1

24

1.43

4046

9.54

3500

0.5

0.03

183

71

MM702-2

24

1.84

5202

12.27

4500

0.5

0.03

236

71

MM702-3

24

2.25

6358

15

5500

0.5

0.03

288

71

MM702-4

24

1.89

4046

12.6

3500

0.66

0.035

242

71

MM702-5

24

2.59

5549

17.28

4800

0.66

0.035

332

71

MM702-6

24

2.97

6358

19.8

5500

0.66

0.035

380

71


Performance Curve

MM702(曲线图)


Outline Drawing


MM702-3


Packing & Shipping


We use reliable packaging and logistics, for customer to receive the products in good condition. Also, we could customize according to your requirements.


Packaging
