BMP612
BMP612

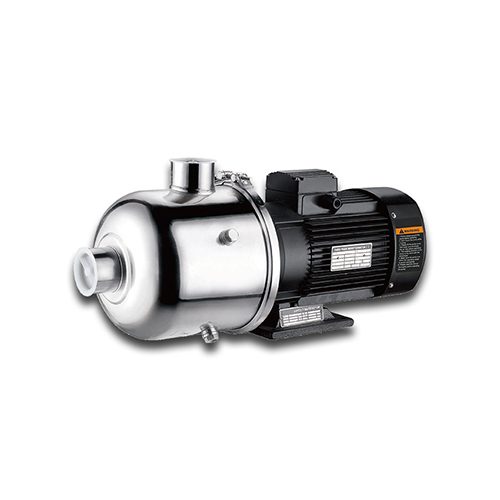

Product:BMP 4m3/h Horizontal Stainless Steel Multi-Stage Centrifugal Electric Water Pump
Application Limits
Temperature range of medium: Normal type 0 ~ +68℃, hot water type 0 ~ +120℃
Maximum ambient temperature: +40 ℃
Maximum working pressure: 10 bar
When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a drving motor of high-power.
pH: 6.5 to 8.5
Applications FieldsAir conditioner system
Industrial cleansingWater processing(Water purification)
Aquaculture
Environmental application
Fertilization/measuring system
Cooling System
Other special applications
Model | Power | Q (m3/h) | 1 | 2 | 3 | 4 | 5 | 6 | 7 | Head Range (m) | |
KW | HP | ||||||||||
4-2(60Hz) | 0.75 | 1 | H(m) | 26 | 25 | 23 | 21 | 19 | 16 | 16~26 | |
4-2(50Hz) | 0.37 | 0.5 | 19 | 18 | 17 | 15 | 12.5 | 10 | 10~19 | ||
4-3(50Hz) | 0.55 | 0.75 | 28 | 27 | 26 | 23.5 | 20.5 | 17 | 17~28 | ||
4-4(50Hz) | 0.75 | 1 | 37.5 | 36 | 34 | 31 | 27 | 23 | 23~37.5 | ||
4-2-A(60Hz) | 0.75 | 1 | 26 | 25 | 23 | 21 | 19 | 16 | 16~26 | ||
4-3-A(60Hz) | 1.1 | 1.5 | 39 | 37.5 | 36 | 32 | 28 | 24 | 24~39 | ||
4-2-A(50Hz) | 0.37 | 0.5 | 19 | 18 | 17 | 15 | 12.5 | 10 | 10~19 | ||
4-3-A(50Hz) | 0.55 | 0.75 | 28 | 27 | 26 | 23.5 | 20.5 | 18 | 18~28 | ||
4-4-A(50Hz) | 0.75 | 1 | 37.5 | 36 | 34 | 31 | 27 | 25 | 25~37.5 | ||
4-5-A(50Hz) | 1.1 | 1.5 | 47 | 45 | 42.5 | 39 | 34 | 29 | 29~47 | ||
4-6-A(50Hz) | 1.1 | 1.5 | 56 | 54 | 51 | 47 | 41.5 | 35.5 | 35.5~56 |
Model | Dim.(mm) | Weight (Kg) | ||||||
L1 | L2 | L3 | D | E | H | K | ||
4-2(60Hz) | 426 | 156 | G1 1/4 | 225/245 | /100 | 13.5 | ||
4-2(50Hz) | 402 | 137 | G1 1/4 | 215/230 | 10.3 | |||
4-3(50Hz) | 402 | 137 | G1 1/4 | 215/230 | 11.8 | |||
4-4(50Hz) | 426 | 156 | G1 1/4 | 225/245 | /100 | 14.3 | ||
4-2-A(60Hz) | 391 | 95 | 105 | 156 | G 1 1/4 | 225/245 | 100 | 14 |
4-3-A (60Hz) | 418 | 122 | 133 | 156 | G 1 1/4 | 225/245 | 100 | 16.5 |
4-2-A (50Hz) | 335 | 95 | 105 | 137 | G 1 1/4 | 215/230 | 9.8 | |
4-3-A (50Hz) | 362 | 122 | 133 | 137 | G 1 1/4 | 215/230 | 10.8 | |
4-4-A (50Hz) | 445 | 151 | 160 | 156 | G 1 1/4 | 225/245 | /100 | 14.3 |
4-5-A (50Hz) | 472 | 178 | 187 | 156 | G 1 1/4 | 225/245 | /100 | 17.6 |
4-6-A (50Hz) | 499 | 232 | 214 | 156 | G 1 1/4 | 225/245 | /100 | 18.3 |
Component | Material | AISI/ASTM | |
1 | Pressure-resistant Component | SUS304 | AISI304 |
2 | Adapting Pipe | SUS304 | AISI304 |
3 | Lining | SUS304 | AISI304 |
4 | Platen Component | SUS304 | AISI304 |
5 | Bearing | YG8 | |
6 | Inlet Fluid Director | SUS304 | AISI304 |
7 | Impeller | SUS304 | AISI304 |
8 | Fluid Director With Bearings | SUS304 | AISI304 |
9 | Fluid Director | SUS304 | AISI304 |
10 | Round Bush | SUS304 | AISI304 |
11 | Outlet Fluid Director | SUS304 | AISI304 |
12 | Hooping Component | SUS304 | AISI304 |
13 | Front Cover Component | SUS304 | AISI304 |
14 | Mechanical Seal | Sic FPM | |
15 | Base | HT200 | ASTM35B |
16 | Motor | Horizontal Motor (Lengthening Shaft) |
Component | Material | AISI/ASTM | |
1 | Motor | Horizontal Motor (Lengthening Shaft) | |
2 | Base | HT200 | ASTM35B |
3 | Water Outlet Shell | SUS304 | AISI304 |
4 | Mechanical Seal | Sic FPM | |
5 | Sealing Gasket | NBR | |
6 | Fluid Director | SUS304 | AISI304 |
7 | Impeller | ||
8 | Long Casing Bush | SUS304 | AISI304 |
9 | Fluid Director With Bearings | SUS304 | AISI304 |
10 | Pull Rod | Steel45# | |
11 | Bearing | YG8 | |
12 | Lining | SUS304 | AISI304 |
13 | Water Inlet Shell | SUS304 | AISI304 |
