| Size: | 500mm |
| Voltage: | 400V |
| Speed (RPM): | 1470 |

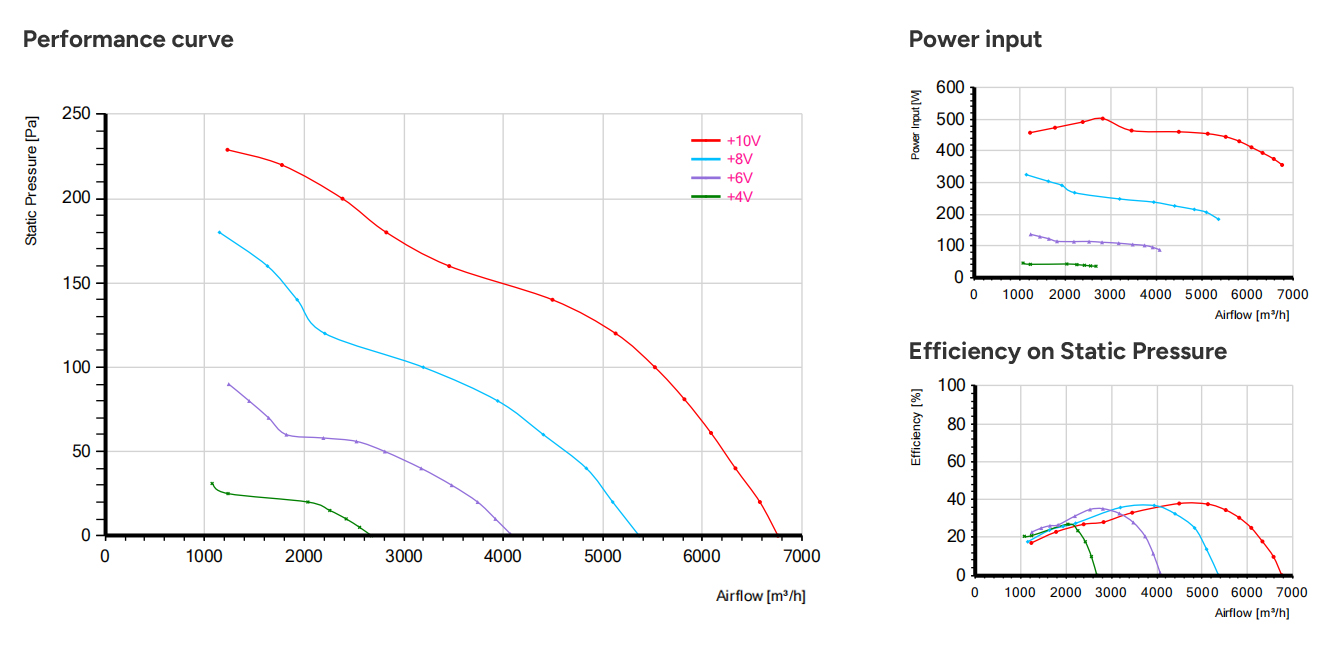

| Max airflow (m³/h ): | 6750 |
Belmont EC axial fans combine aerodynamic impellers with high-efficiency electronically commutated (EC) motors,providing smart, energy-saving ventilation
solutions. Ideal for customers seeking noise reduction, intelligent control,and top-tier energy performance.
Typical Applications: Air handling units (AHUs), cold storage, commercial HVAC systems, agricultural ventilation, heat pumps.
Key Advantages:
✔ Up to 30% energy savings over AC fans
✔ 0~10V DC/PWM control signal or MODBUS stepless speed control.
✔ Ultra-low noise and compact integrated design
Custom Options:
✔ Integrated diffuser or guide vane
✔ IP54/IP55 waterproof grade IP54/IP55
✔ Custom connectors
✔ All nameplates, customer logos, cable lengths, and parameters can be customized.
| Motor technology | EC |
| Supply voltage | 3P, 380~480V |
| Supply frequency | 50/60 Hz |
| Rated voltage | 400 VAC |
| Power input | 460 W |
| Current | 0.86 A |
| Speed | 1470 r/min |
| Perm. amb. temp | -25℃ ~ +50℃ |
| Blades count | 5 |
| Direction | Suction (Seen from cable exit) |
| Protection class | IP54 |
| Insulation class | F |
| Impeller material | Cold rolled sheet steel |
| Acoustic | 71 dB(A) |
| Controller | Integrated (Cable line), 0~10V PWM |

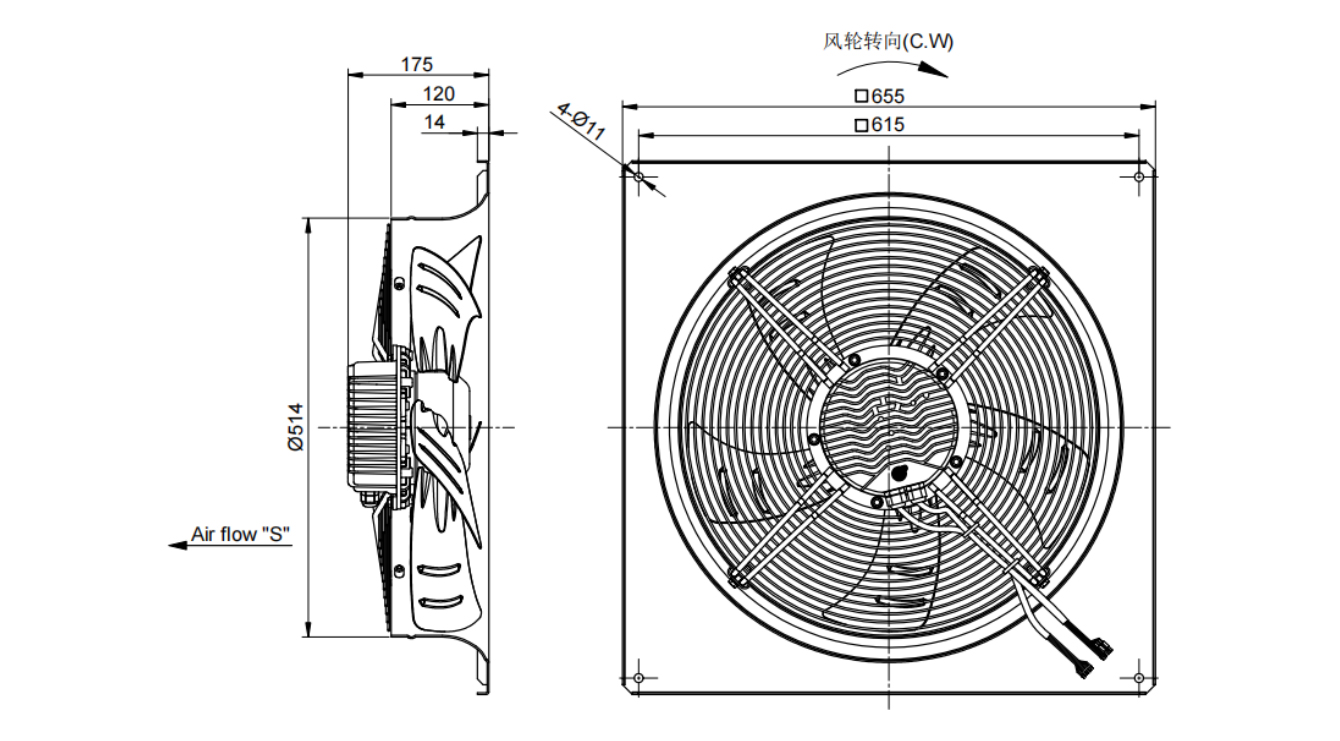

| Attachment | With square plate; Reversed Guard Grille |

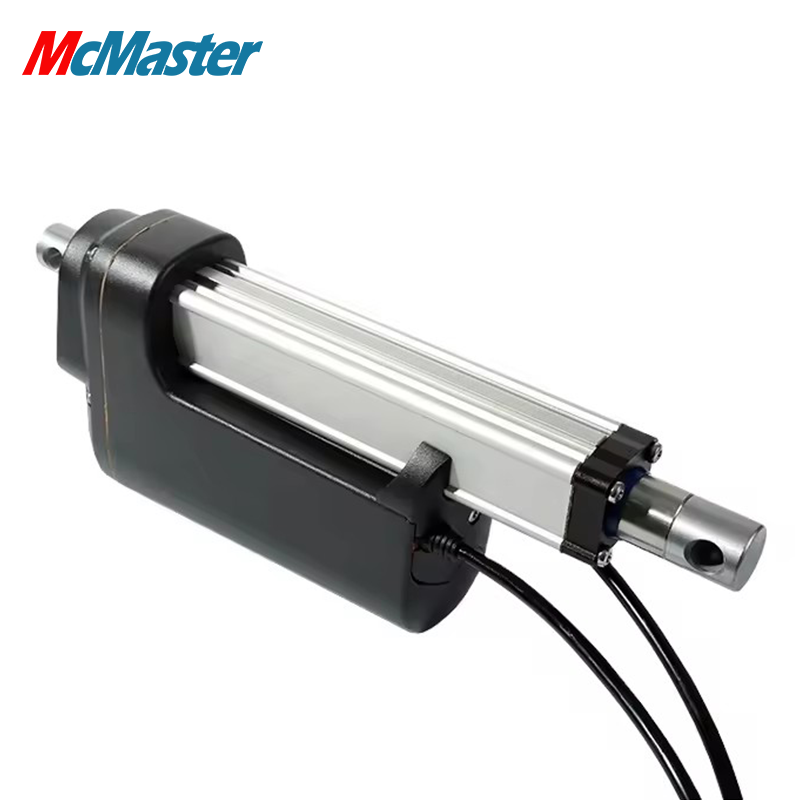

IP66 High Quality Industrial Linear Actuator DC 12V 24V 5-60mm/s 12000N Linear Actuator
