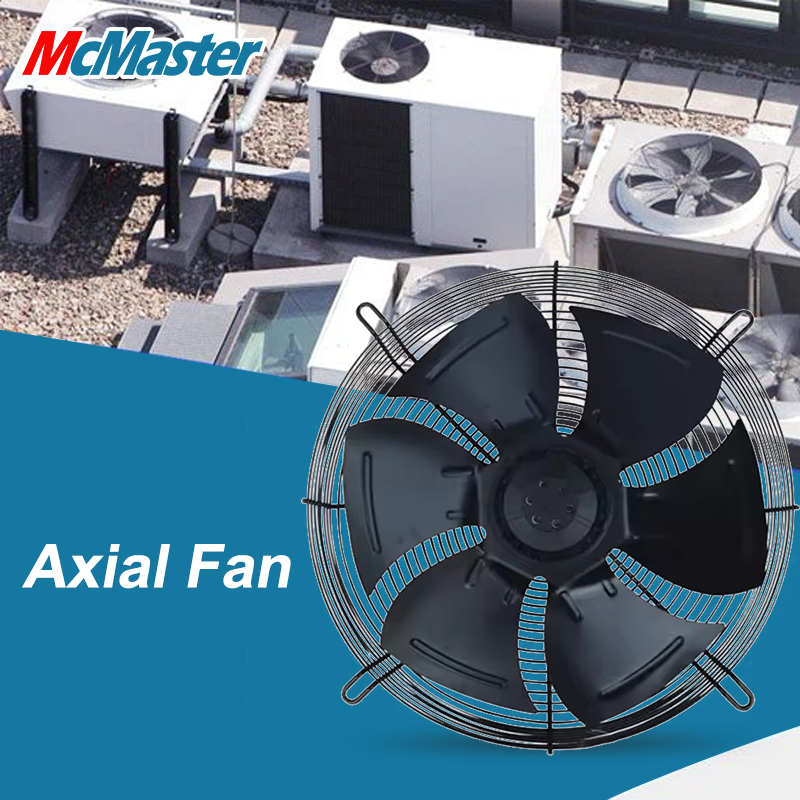

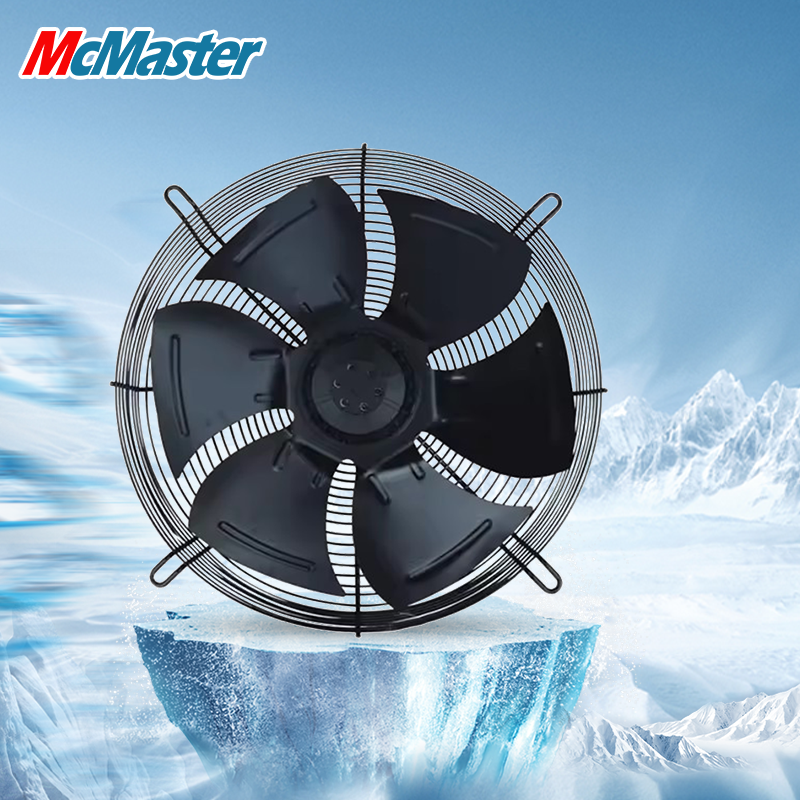

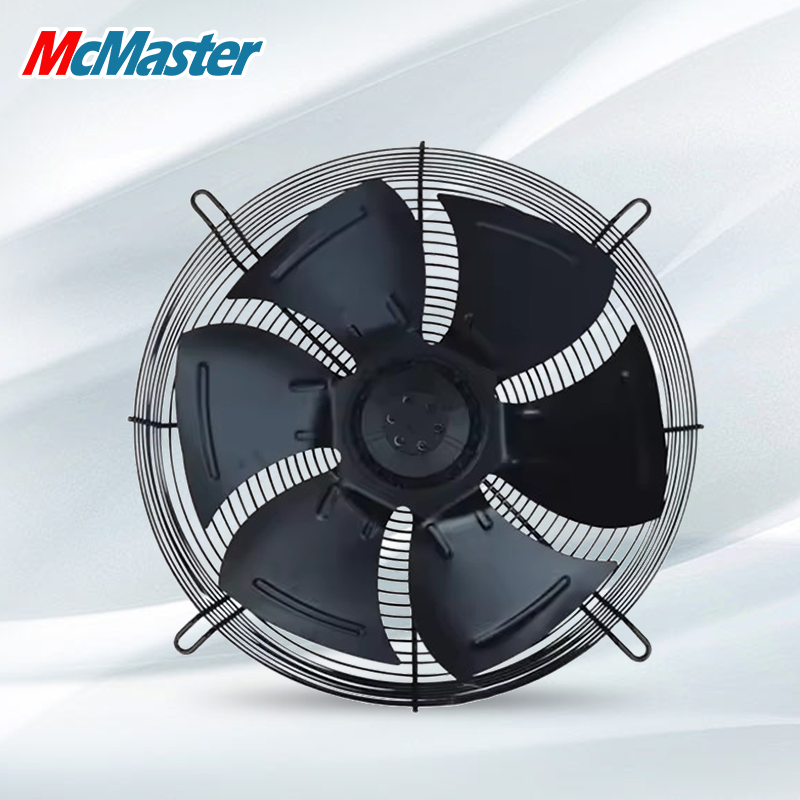

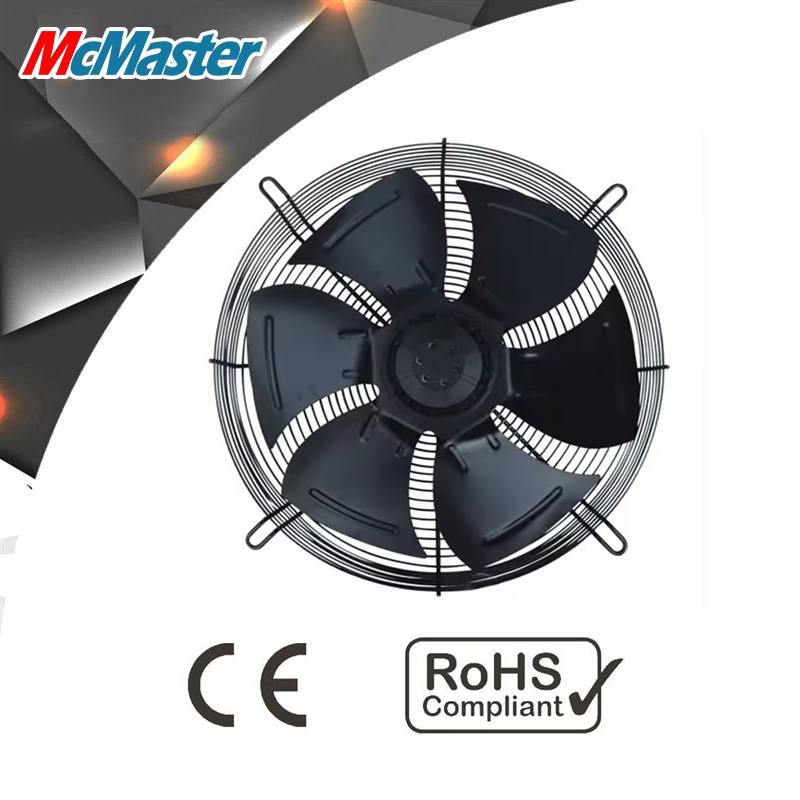

The features of Axial Flow Fan are Low depth installation, low noise and high efficiency, which is especially suitable for air flow in heat exchangers.

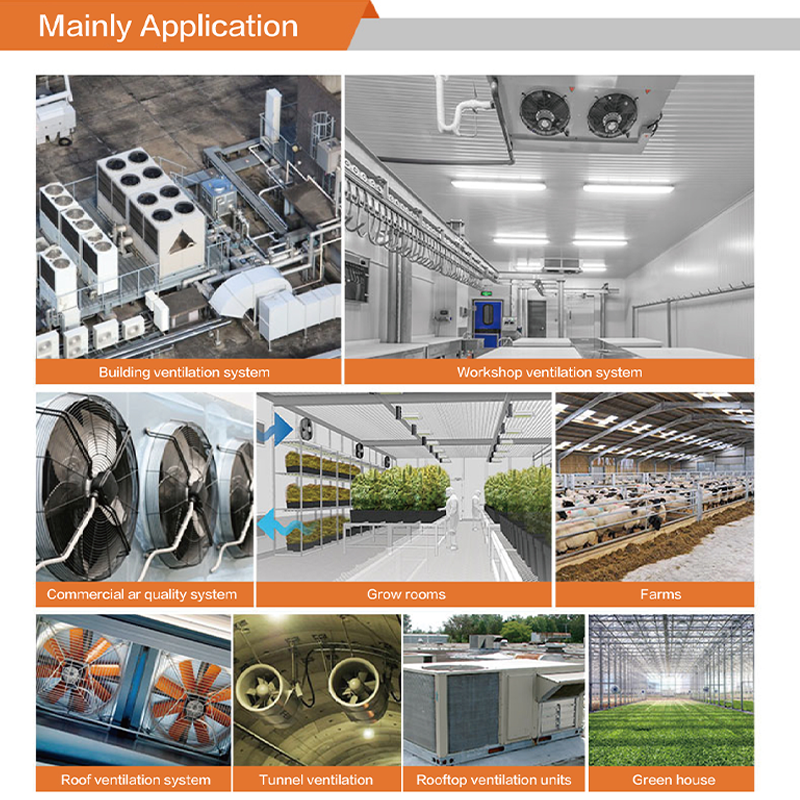

Applications:
Ventilation, air conditioning and refrigeration, wind power and mechanical engineering, industry of refined processing equipment.
Customized manufacturing available.
Minimum Order Quantity:30 Sets
Details:
| Model | Size(mm) | Voltage(V) | Frequency(Hz) | InputPower(W) | Current(A) | AirVolume(m3/h) | Noise(dBA) | MaxEnvironmentalTemperture(℃) | Weight(Kg) |
| BMF-6E300 | 300 | 230 | 50/60 | 100 | 0.85 | 2250 | 63 | 50 | 2.8 |
| BMF-6E315 | 315 | 230 | 50/60 | 120 | 0.95 | 2400 | 65 | 50 | 3.1 |
| BMF-6E350 | 350 | 230 | 50/60 | 150 | 1.27 | 3000 | 66 | 50 | 3.8 |
| BMF-6E350-01 | 350 | 230 | 50/60 | 250 | 1.85 | 3250 | 75 | 50 | 3.8 |
| BMF-6E400 | 400 | 230 | 50/60 | 200 | 1.65 | 3910 | 67 | 50 | 5.5 |
| BMF-6E450 | 450 | 230 | 50/60 | 332 | 2.4 | 5200 | 69 | 50 | 6.8 |
| BMF-8E450 | 450 | 230 | 50/60 | 450 | 3.5 | 6200 | 68 | 50 | 9.0 |
| BMF-8D450 | 450 | 400 | 50/60 | 1170 | 1.9 | 9100 | 78 | 50 | 10.0 |
